Functional circuits in a clinic: how to design them correctly

The functional circuits of a clinic are the routes along which patients, staff, instruments, linen and waste move, separately and in a logical order. When they are well planned, nobody notices them: the patient walks from reception to the consulting room without hesitation, the nurse does not cross the waiting room with a tray of used instruments, and the public health directorate (DSP) inspector finds a space that explains itself. When they are planned late, they become the most expensive correction in a medical project. Below you will find which circuits every clinic has, what the Romanian norms require, how we design them and where mistakes usually appear.

SelfDezign

Design clear circuits for your clinic

SelfDezign designs spaces for medical clinics, from the interior concept and technical design to coordination of the works.

Discover SelfDezign

In short

• A functional circuit is a route, not a room. What matters is the order in which spaces follow one another and what is met along the way, not only the area of each room.
• The basic rule is clean-dirty separation and avoiding crossings between flows: patients with staff, sterile instruments with used instruments, clean linen with dirty linen.
• Circuits are decided before any finish. The flow plan comes first and the visual concept supports it, not the other way round.
• Authorisation is only the minimum threshold. A well-designed clinic can be reconfigured easily, for example to isolate one area without stopping the rest of the activity.
• Responsibility does not end at opening: circuits must be respected and monitored daily, and the design can make them easy or hard to respect.

What functional circuits actually are

Many clinic owners hear the expression "functional circuits" for the first time in a conversation with an authorisation consultant or at first contact with the Public Health Directorate. Hence the confusion: circuits are seen as a formality to tick off on a drawing. In reality, they are more like the circulatory system of the clinic. Each flow carries something different, has its own direction of travel and must not mix with the others at critical points.

The difference between a layout plan and a circuit plan is like the difference between a list of rooms and a script. The list says you have a reception, three consulting rooms, a sterilisation room and a changing room. The script says what happens from the moment the patient enters until they leave, from the doctor's arrival in the morning until their departure in the evening, and from the moment an instrument is used until it returns sterile to the drawer.

A functional circuit has three components:

1. The starting point and the destination (for example, the patient entrance and the consulting room).
2. The sequence of intermediate spaces (reception, waiting area, possibly triage, toilet, consulting room).
3. The interference zones with other flows, which must either be eliminated or controlled through separation in time, doors, signage or partitioning.

The draft order on healthcare-associated infections, published for public consultation in July 2026, treats circuits precisely as a safety issue: supervision and control of functional circuits are explicit duties of the staff responsible for infection prevention and of the head nurse. This means a badly designed circuit does not remain a comfort problem. It becomes a problem that the medical team must manage, day after day, through rules and extra attention.

The circuits every clinic has

The number and complexity of circuits depend on the profile: a family medicine practice does not have the same needs as a day surgery clinic. Even so, almost every outpatient medical unit works with the flows below.

In units with beds, the circuits for food, for visitors on wards and for inpatients are added, which the draft HAI norms list explicitly, from food distribution to compliance with dietary regimes. For an outpatient clinic, the emphasis falls on the first six rows of the table.

If you work in a dental practice or an outpatient surgery practice, it is worth following how the clinical protocol connects to the space. In oral surgery, for example, each stage, from assessment to intervention and recovery, requires a certain order and a certain preparation of the room. This same order must then be found in the plan.

What the Romanian legal framework requires

The regulatory framework for medical spaces is fragmented by type of unit, and this explains part of the confusion. A few reference points:

• Medical and dental practices have as their reference Order No. 1338/2007, issued by the Ministry of Public Health under Law No. 95/2006 on healthcare reform and published in the Official Gazette (Monitorul Oficial) No. 575 of 22 August 2007, which sets out the functional structure of practices.
• Hospitals and their departments refer to the norms on functional structure in Annex 3 of Order No. 914/2006, as subsequently amended, in the consolidated version.
• Prevention of healthcare-associated infections has its own norms, which describe circuit-related duties for each category of staff. For units with beds, the Ministry of Health has put a new draft order on these norms to public consultation .
• Mobile practices and medical caravans have separate methodological norms, updated by Order No. 5871/2024.

Inspection does not come from a single direction. According to an analysis published by Medical Manager, medical practices are inspected by several authorities, including the Ministry of Health, the public health directorates and the professional colleges.

Where you need to pay attention: the norms change, and the specific requirements differ depending on the specialty, the procedures you perform and whether there are beds. Before you sign the lease or start the works, verify the current requirements directly with the public health directorate in your county and with the doctor or consultant who handles the sanitary authorisation. A good interior design project starts from these requirements and does not interpret them in place of the authority.

Principles of a well-designed circuit

Beyond the letter of the norms, there are a few principles that any infection control specialist recognises immediately.

One way, from dirty to clean

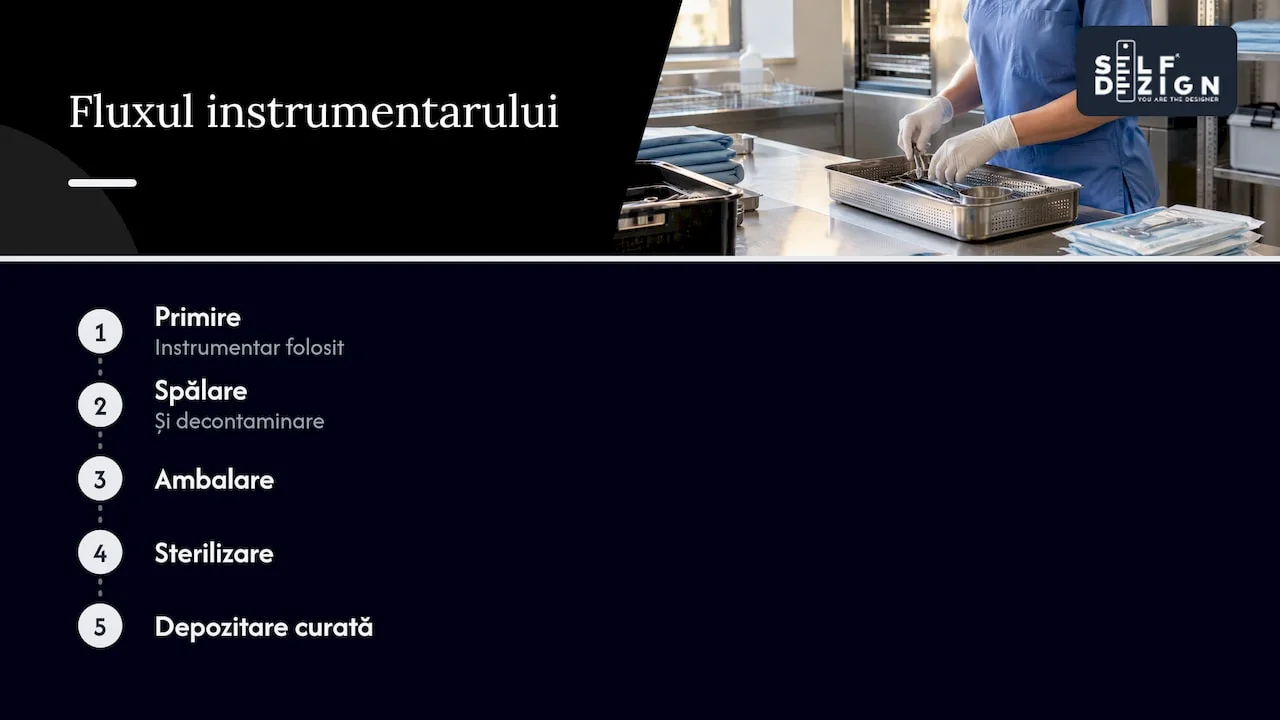

Instruments, linen and waste must move in one direction only. In the sterilisation area, this usually means a clear sequence: receiving used instruments, washing and decontamination, packaging, sterilisation, clean storage. Even in a small space, where everything fits in a single room, the order of worktops and equipment must reproduce this direction.

No crossings at critical points

Two flows can meet in a wide hallway, at different times, without problems. They cannot meet at the door of the sterilisation room or in front of the waste storage. The plan must identify these points and solve them through positioning, not through signs such as "no access".

A route that reads without explanation

World Health Organization guidelines describe the ideal staff flow as a sequence of stages, from a dedicated entrance to the changing room and then to the work area, a flow that must be rational, clear and properly signposted. The same principle applies to patients. Light, floor colour, furniture orientation and the position of reception can make signage almost unnecessary. A patient who knows where to go is a calmer patient, and staff who do not answer "which way is the entrance?" ten times an hour work better.

Flexibility for situations you cannot foresee

The pandemic showed how quickly medical spaces become rigid when they are designed strictly for opening day. The WHO Europe report on the architecture of future hospitals starts precisely from the need to deliver services without interruption in crisis situations. For a private clinic, the practical translation is simple: a second entrance that can be activated, an area that can be closed off without blocking the rest of the activity, partitions that are easy to change.

How we design circuits, step by step

The complete process is described in detail in our guide to the design process for a medical clinic. For circuits, the essential steps are as follows:

1. Inventory of activity. Which specialties, how many consulting rooms, which procedures, how many patients per hour at peak, how many employees per shift. Without these data, any plan is just a drawing.
2. Map of flows on paper, without walls. We draw each circuit as an arrow: where it starts, what it passes through, where it ends. Only then do we see where the arrows overlap.
3. Overlay on the real space. This is where the constraints appear: a single entrance, fixed drainage stacks, windows on one side only, a stairwell shared with other tenants. Often this step decides whether the space is worth renting.
4. Zoning. We divide the space into public, semi-public and technical zones. We wrote at length about the logic of this division in the guide on the functional zones of a private practice.
5. Validation with the medical team. The head doctor and the head nurse "walk through" the plan as a working day. Almost always at least one situation appears that nobody anticipated.
6. Visual concept and technical details. Only now do we choose materials, lighting, colours and furniture, so that each supports the routes already set.
7. Coordination of execution. On site, a door moved by 60 centimetres or a worktop installed the wrong way round can break a circuit. Supervision matters as much as the design.

A typical scenario: four consulting rooms in 180 m²

To make this concrete, imagine a common scenario: an outpatient clinic with four consulting rooms, fitted out on the ground floor of an apartment block, with a single glazed facade and one main entrance.

The first plan variant, drawn by the owner, places reception in the centre, the consulting rooms all around and sterilisation in the most hidden corner, next to the patients' toilet. It seems logical. When the circuits are walked through, however, three problems appear: nurses carry used instruments past the waiting room, waste leaves through the same door as the patients, and staff have nowhere to change without passing through the public hall.

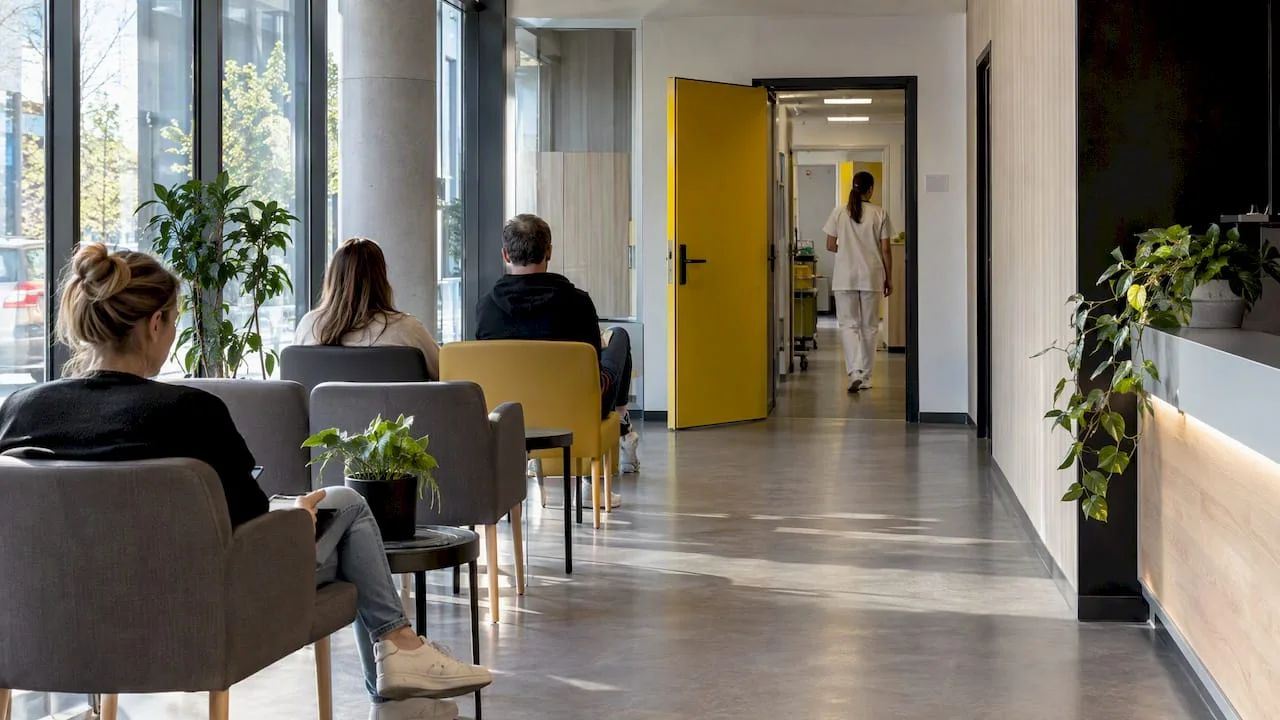

The solution does not require more space, but a different order. Sterilisation moves between the consulting rooms, onto a narrow service corridor accessible only to staff. The changing room takes the end of this corridor, next to a secondary door to the inner courtyard, which is also used to remove waste outside peak hours. Reception stays at the entrance, and the waiting room gets the light from the shop window. The patient never sees the technical area, and the team no longer crosses the public area. The same number of square metres, a completely different clinic.

Mistakes that cost money after opening

The most expensive problems are not the ones the DSP rejects at authorisation, but the ones that pass authorisation and then make the work harder for years.

• Renting the space before the flow analysis. A space with a single entrance and no possibility of a service corridor limits every solution from the start.
• Sterilisation treated as a storeroom. It is the technical heart of the clinic and needs floor area, ventilation, utilities and a precise order of equipment.
• No space for waste. It seems like a detail until the containers end up in the hallway.
• Confidentiality sacrificed for circulation. A hallway that runs past the consulting room doors, with the waiting room in the same space, exposes conversations. We covered the subject in more detail in the article on confidentiality in medical clinics.
• Accessibility added at the end. A ramp or an adapted toilet changes circulation widths and turning radii. Integrated from the start, they cost almost nothing. See also our guide on accessibility of medical clinics.
• Rigidity. Masonry walls everywhere, with no possibility of reconfiguration, turn any change of specialty into a small renovation.

Materials, finishes and technology along the route

A circuit that is correct on the plan can be undermined by unsuitable materials. The WHO guide on environmental safety in healthcare facilities insists on surfaces that are easy to clean and resistant to disinfectants, applied daily. In practice, this means continuous flooring, coved junctions between floor and wall, worktops without joints in work areas and furniture without hard-to-reach corners. A spectacular parquet or a premium fabric in the consulting room can look impeccable in photographs and become impossible to maintain according to protocol after a few months.

Technology is also part of the flow. If the doctor fills in the patient record directly in the consulting room, the sockets, the data network and the monitor position must be planned together with the furniture. For a clinic, the IT infrastructure is designed, not improvised after the furniture is installed.

The WHO guidelines on infection control in healthcare facilities also remind us that a prevention programme includes standard precautions, staff training and staff protection alike. Design does not replace any of them, but it can make them easier to apply.

Our perspective

When a clinic owner comes to us, the first question is not what style they want, but what an ordinary day looks like in their clinic. How many patients come in during the morning, who receives them, where the nurse prepares, where the instruments leave after a procedure. The circuit plan is born from the answers, and only after it the visual concept.

We do not work with standard plans for clinics, because two clinics with the same floor area can have completely different flows. A dermatology clinic, a dental practice with three units and a rehabilitation centre have different priorities, different critical points and a different pace. A solution copied from another clinic mostly solves someone else's problems.

We believe the best functional circuit is the one the patient does not notice and the medical team does not have to defend daily through rules. A space designed to inspire trust, reduce friction and support a clear experience from the first contact is not an aesthetic luxury, but a condition for a clinic that works well in the long term.
